Auto Electric International provides 100% load testing of all units sold. Our testing is done primarily on D & V Electronics testers, considered by us to be the best in the industry.


CDT-65A

The CDT-65A is a microprocessor based diode tester designed to provide rebuilders with quick, accurate and easy to use device to check and measure all main parameters of regular and avalanche rectifiers. During the test the measured values are compared with preset limits and GOOD/BAD indication displayed along with an audible beep if the diode is OK.

The readings can be taken even with the stator attached to the rectifier. The tester can detect the direction of the diode and automatically reverse the test probes to provide proper measurement. The limits are fully programmable by the operator.

Features

  • Test Current up to 125 Amps
  • Diode Forward Voltage Drop
  • Reverse Break Over Voltage 0-200 Volts
  • Reverse Leakage Current 0-1000µ A

CDT-150

  • The CDT-150 is a microprocessor based diode tester designed to provide remanufacturers with quick, accurate and easy to use device to test all main parameters of regular and avalanche rectifiers.

  • The tester automatically scans all diodes in the rectifier and measures each one of them separately.

  • The full test takes 5-6 seconds to complete.

  • The measured values are compared with preset limits and PASS or Fail is indicated, according to the results.

  • The readings can be taken even with the stator attached to the rectifier.

  • An audible beeb is heard when the diode or rectifier has passed the test.

  • The tester can detect the direction of the diode and automatically reverse the test probes to provide proper measurement.

  • The limits are fully programmable by the operator.

  • The tester can store specifications for popular rectifiers.

  • Optional enclosure and fixtures available for many popular rectifiers (enclosure and fixture in photo are optional)

Measured Parameters:

  • Rectifier Diode Test Current 25 -250 Amps
  • Diode Trio Test Current 5 - 25 Amps
  • Diode Forward Voltage Drop 0 - 2.55 Volts
  • Break-over Voltage 20 - 200 Volts
  • Break-over Voltage (optional) 20 - 400 Volts
  • Leakage Current 0 - 999 mAmps

CDT-200

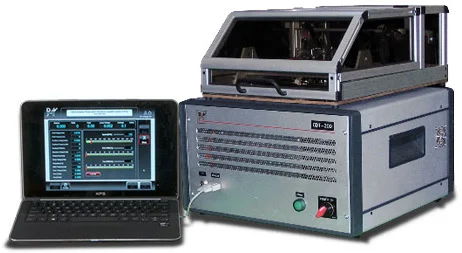

The CDT-200 is a heavy duty, medium volume, extremely accurate tester of automotive rectifiers and diodes. It is designed to provide the remanufacturer with a quick, accurate and easy to use test of all critical parameters associated with standard and avalanche rectifiers. The rigid industrial design and PC based user interface, make the CDT-200 a breeze to use. Extreme accuracy is achieved by real time filtering and digital processing. The tester can measure leakage as low as 10 nano-Amps. Real life conditions are simulated to maximize diagnostic capabilities. Additionally, analysis of the rectifiers thermal resistance can be performed to detect poor internal diode connections and related defects. Standard diode performance tests can be performed in as little as 3 seconds for a complete rectifier. The test system can also verify the capacitors which are built into many rectifiers.

The machine has programmable test profiles which include machine setup with operating instructions. It can also display pictures of the rectifier indicating faulty diode locations. The test system also features a setup mode to configure the test conditions, tooling, and limits. Test results generated by faulty diodes will indicate their location referenced to an image of the rectifier for easy operator recognition. The CDT-200 tests the connections before the actual cycle begins. This eliminates the possibility of false test results. Faulty connections are also indicated with a graphical display for easy troubleshooting. Pass and Fail status is clearly displayed upon completion of the test cycle.

Measured Parameters:

  • Break-over Voltage programmable up to 500 Volts
  • Break-down Test Current 0 - 100 µA
  • Leakage Current 0 - 20 µA, (1 nano-Amp resolution)
  • Leakage current measured at programmable voltage up to 500V
  • Diode Voltage Drop 0 - 2.5 Volts
  • Measures Thermal & Dynamic Resistance
  • Programmable load current up to 150 Amps continuous
  • Reverse leakage noise analysis

See D & V Electronics for complete details
